Setting up azure firewall for analysing outgoing traffic in AKS

Dennis Zielke
9 min readJan 19, 2019

--

Every now and then we get the question on how to lock down ingoing to and outgoing traffic from a kubernetes cluster in azure. One option that can be set up relatively easy but is not documented in detail is using the Azure Firewall (https://azure.microsoft.com/en-us/services/azure-firewall/).

My personal recommendation on this scenario is to use the firewall to diagnose and watch the network dependencies of your applications — which is why I am also documenting the services that are currently needed for AKS to run. If you turn on the rules to block outgoing traffic, you risk that your cluster breaks if the engineering team brings in additional required network dependencies. Be careful on production environments with this.

The official documentation (once fully supported) will be made available: https://docs.microsoft.com/en-us/azure/aks/limit-egress-traffic

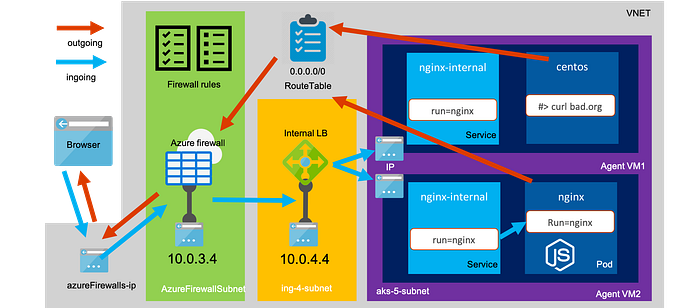

The end result will look like this and requires some steps to configure the vnet, subnets, routetable, firewall rules and azure kubernetes services which are described belown and can be adapted to any kubernetes installation on azure:

First we will set up the vnet — I prefer using azure cli in shell.azure.com over powershell but you can easy achieve the same using terraform or arm. If you have preferences on the naming conventions please adjust the variables below. In most companies the vnet is provided by the networking team, so we should assume that the network configuration will not be done by the team which is maintaining the AKS cluster.

Lets define some variables first:

SUBSCRIPTION_ID=$(az account show --query id -o tsv) # here enter your subscription idKUBE_GROUP="kubes_fw_knet" # here enter the resources group name of your AKS clusterKUBE_NAME="dzkubekube" # here enter the name of your kubernetes resourceLOCATION="westeurope" # here enter the datacenter locationKUBE_VNET_NAME="knets" # here enter the name of your vnetKUBE_FW_SUBNET_NAME="AzureFirewallSubnet" # this you cannot changeAPPGW_SUBNET_NAME="gw-1-subnet"KUBE_ING_SUBNET_NAME="ing-4-subnet" # here enter the name of your ingress subnetKUBE_AGENT_SUBNET_NAME="aks-5-subnet" # here enter the name of your AKS subnetFW_NAME="dzkubenetfw" # here enter the name of your azure firewall resourceAPPGW_NAME="dzkubeappgw"KUBE_VERSION="$(az aks get-versions -l $LOCATION --query 'orchestrators[?default == `true`].orchestratorVersion' -o tsv)"KUBE_CNI_PLUGIN="azure" # alternative "kubenet"
  1. Select subscription, create the resource group and the vnet
az account set --subscription $SUBSCRIPTION_IDaz group create -n $KUBE_GROUP -l $LOCATIONaz network vnet create -g $KUBE_GROUP -n $KUBE_VNET_NAME

2. Create your service principal and assign permissions on vnet for your service principal — usually “virtual machine contributor” is enough

SERVICE_PRINCIPAL_ID=$(az ad sp create-for-rbac --skip-assignment --name $KUBE_NAME-sp -o json | jq -r '.appId')SERVICE_PRINCIPAL_SECRET=$(az ad app credential reset --id $SERVICE_PRINCIPAL_ID -o json | jq '.password' -r)sleep 5 # wait for replicationaz role assignment create --role "Contributor" --assignee $SERVICE_PRINCIPAL_ID -g $KUBE_GROUP

3. Create subnets for the firewall, ingress and AKS

az network vnet subnet create -g $KUBE_GROUP --vnet-name $KUBE_VNET_NAME -n $KUBE_FW_SUBNET_NAME --address-prefix 10.0.3.0/24az network vnet subnet create -g $KUBE_GROUP --vnet-name $KUBE_VNET_NAME -n $APPGW_SUBNET_NAME --address-prefix 10.0.2.0/24az network vnet subnet create -g $KUBE_GROUP --vnet-name $KUBE_VNET_NAME -n $KUBE_ING_SUBNET_NAME --address-prefix 10.0.4.0/24az network vnet subnet create -g $KUBE_GROUP --vnet-name $KUBE_VNET_NAME -n $KUBE_AGENT_SUBNET_NAME --address-prefix 10.0.5.0/24 --service-endpoints Microsoft.Sql Microsoft.AzureCosmosDB Microsoft.KeyVault Microsoft.Storage

First we are going to configure the azure firewall public ip, the azure firewall itself and a log analytics workspace for firewall logs. To make sure that you can see outbound network traffic I would recommend to import the diagnostic dashboard via this file as described here: https://docs.microsoft.com/en-us/azure/firewall/tutorial-diagnostics.

az extension add --name azure-firewallaz network public-ip create -g $KUBE_GROUP -n $FW_NAME --sku Standardaz network firewall create --name $FW_NAME --resource-group $KUBE_GROUP --location $LOCATIONaz network firewall ip-config create --firewall-name $FW_NAME --name $FW_NAME --public-ip-address $FW_NAME --resource-group $KUBE_GROUP --vnet-name $KUBE_VNET_NAMEFW_PRIVATE_IP=$(az network firewall show -g $KUBE_GROUP -n $FW_NAME --query "ipConfigurations[0].privateIpAddress" -o tsv)az monitor log-analytics workspace create --resource-group $KUBE_GROUP --workspace-name $FW_NAME --location $LOCATION

To make sure that all outgoing traffic gets routed through the firewall we need to configure a custom routetable, point it at the internal ip of our firewall and connect it to our AKS cluster subnet.

az extension add --name azure-firewallaz network public-ip create -g $KUBE_GROUP -n $FW_NAME-ip --sku StandardFW_PUBLIC_IP=$(az network public-ip show -g $KUBE_GROUP -n $FW_NAME-ip --query ipAddress)az network firewall create --name $FW_NAME --resource-group $KUBE_GROUP --location $LOCATIONaz network firewall ip-config create --firewall-name $FW_NAME --name $FW_NAME --public-ip-address $FW_NAME-ip --resource-group $KUBE_GROUP --vnet-name $KUBE_VNET_NAMEFW_PRIVATE_IP=$(az network firewall show -g $KUBE_GROUP -n $FW_NAME --query "ipConfigurations[0].privateIpAddress" -o tsv)az monitor log-analytics workspace create --resource-group $KUBE_GROUP --workspace-name $FW_NAME-lgw --location $LOCATIONKUBE_AGENT_SUBNET_ID="/subscriptions/$SUBSCRIPTION_ID/resourceGroups/$KUBE_GROUP/providers/Microsoft.Network/virtualNetworks/$KUBE_VNET_NAME/subnets/$KUBE_AGENT_SUBNET_NAME"az network route-table create -g $KUBE_GROUP --name $FW_NAME-rtaz network route-table route create --resource-group $KUBE_GROUP --name $FW_NAME --route-table-name $FW_NAME-rt --address-prefix 0.0.0.0/0 --next-hop-type VirtualAppliance --next-hop-ip-address $FW_PRIVATE_IPaz network vnet subnet update --route-table $FW_NAME-rt --ids $KUBE_AGENT_SUBNET_IDaz network route-table route list --resource-group $KUBE_GROUP --route-table-name $FW_NAME-rt

The next step is to create the necessary exception rules for the AKS-required network dependencies that will ensure the worker nodes can set their system time, pull ubuntu updates and retrieve the AKS core container images from the Microsoft Container Registry. The following will allow dns, time and the service tags for the azure container registry.

az network firewall network-rule create --firewall-name $FW_NAME --collection-name "time" --destination-addresses "*"  --destination-ports 123 --name "allow network" --protocols "UDP" --resource-group $KUBE_GROUP --source-addresses "*" --action "Allow" --description "aks node time sync rule" --priority 101az network firewall network-rule create --firewall-name $FW_NAME --collection-name "dns" --destination-addresses "*"  --destination-ports 53 --name "allow network" --protocols "Any" --resource-group $KUBE_GROUP --source-addresses "*" --action "Allow" --description "aks node dns rule" --priority 102az network firewall network-rule create --firewall-name $FW_NAME --collection-name "servicetags" --destination-addresses "AzureContainerRegistry" "MicrosoftContainerRegistry" "AzureActiveDirectory" "AzureMonitor" --destination-ports "*" --name "allow service tags" --protocols "Any" --resource-group $KUBE_GROUP --source-addresses "*" --action "Allow" --description "allow service tags" --priority 110az network firewall network-rule create --firewall-name $FW_NAME --collection-name "hcp" --destination-addresses "AzureCloud.$LOCATION" --destination-ports "1194" --name "allow master tags" --protocols "UDP" --resource-group $KUBE_GROUP --source-addresses "*" --action "Allow" --description "allow aks link access to masters" --priority 120

Since not all of the dependencies can be allowed through a network rule because they neither have a service tag or a fixed ip range. So these allow rules are defined using dns, while using the AKS fqdsible. The latest list of these entries can be found here.

az network firewall application-rule create --firewall-name $FW_NAME --resource-group $KUBE_GROUP --collection-name 'aksfwar' -n 'fqdn' --source-addresses '*' --protocols 'http=80' 'https=443' --fqdn-tags "AzureKubernetesService" --action allow --priority 101az network firewall application-rule create  --firewall-name $FW_NAME --collection-name "osupdates" --name "allow network" --protocols http=80 https=443 --source-addresses "*" --resource-group $KUBE_GROUP --action "Allow" --target-fqdns "download.opensuse.org" "security.ubuntu.com" "packages.microsoft.com" "azure.archive.ubuntu.com" "changelogs.ubuntu.com" "snapcraft.io" "api.snapcraft.io" "motd.ubuntu.com"  --priority 102

In case you want to allow images from docker hub (which we will need later to test the filter rules), you might want to add the following rule:

az network firewall application-rule create  --firewall-name $FW_NAME --collection-name "dockerhub" --name "allow network" --protocols http=80 https=443 --source-addresses "*" --resource-group $KUBE_GROUP --action "Allow" --target-fqdns "*auth.docker.io" "*cloudflare.docker.io" "*cloudflare.docker.com" "*registry-1.docker.io" --priority 200

As you might know there are two different options on how networking can be set up in AKS called “Basic networking” (using kubenet cni) and “Advanced Networking” (using azure cni). I am not going into detail how they differ — you can look it up here: https://docs.microsoft.com/en-us/azure/aks/concepts-network . For the usage of azure firewall in this scenario it does not matter (for new clusters)

KUBE_AGENT_SUBNET_ID="/subscriptions/$SUBSCRIPTION_ID/resourceGroups/$KUBE_GROUP/providers/Microsoft.Network/virtualNetworks/$KUBE_VNET_NAME/subnets/$KUBE_AGENT_SUBNET_NAME"az aks create --resource-group $KUBE_GROUP --name $KUBE_NAME --node-count 2 --network-plugin $KUBE_CNI_PLUGIN --vnet-subnet-id $KUBE_AGENT_SUBNET_ID --docker-bridge-address 172.17.0.1/16 --dns-service-ip 10.2.0.10 --service-cidr 10.2.0.0/24 --client-secret $SERVICE_PRINCIPAL_SECRET --service-principal $SERVICE_PRINCIPAL_ID --kubernetes-version $KUBE_VERSION --no-ssh-key --outbound-type userDefinedRouting

Finally we also want to add logging to our AKS cluster by deploying a log analytics space and connect our AKS monitoring addon to use that space.

az monitor log-analytics workspace create --resource-group $KUBE_GROUP --workspace-name $KUBE_NAME --location $LOCATIONWORKSPACE_ID=$(az monitor log-analytics workspace show --resource-group $KUBE_GROUP --workspace-name $KUBE_NAME -o json | jq '.id' -r)az aks enable-addons --resource-group $KUBE_GROUP --name $KUBE_NAME --addons monitoring --workspace-resource-id $WORKSPACE_ID

Now that the firewall works lets set up diagnostics and import the dashboard file as described here: https://docs.microsoft.com/en-us/azure/firewall/tutorial-diagnostics.

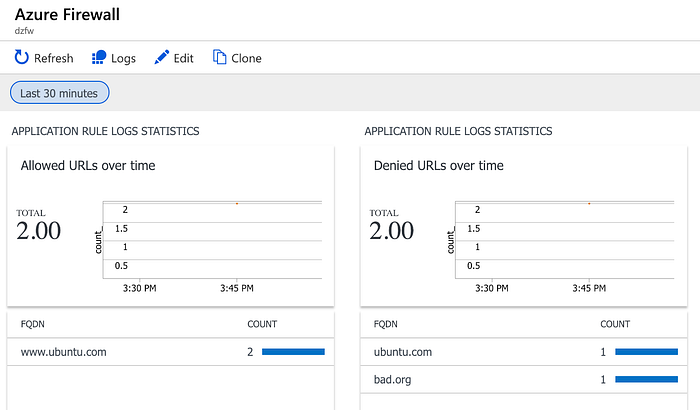

We can see that the firewall is working correctly and blocking ubuntu.com but not www.ubuntu.com

A network rule matches the traffic flow then no other application rule will be applied. To limit the flow to just the allowed ip ranges between your worker nodes and the IP of your api server first use the following command to get the IP address of your API server.

Get the IP address of your api server
HCP_IP=$(kubectl get endpoints -o=jsonpath='{.items[?(@.metadata.name == "kubernetes")].subsets[].addresses[].ip}')

Be aware that the API Server IP address should stay stable during normal operations but it might change in case of an internal failover. The default rule above will allow traffic from your AKS subnet to the whole azure region on target port 1194 . In case you want to narrow this down further you can do this after cluster deployment by limiting access to port 1194 only on your master ip address by running the following command

az network firewall network-rule create --firewall-name $FW_NAME --collection-name "aksnetwork" --destination-addresses "$HCP_IP"  --destination-ports 1194 --name "allow network" --protocols "UDP" --resource-group $KUBE_GROUP --source-addresses "*" --action "Allow" --description "aks master rule" --priority 120

Currently AKS needs the following outgoing network dependencies (check official docs for updated list):

  • *.hcp.<location>.azmk8s.io (eg. *.hcp.westeurope.azmk8s.io) — this is the dns that is running your api server(HTTPS:443, UDP: 1194)
  • mcr.microsoft.com , *.data.mcr.microsoft.com— This is required since some AKS images are coming from the Microsoft Container Registry (HTTPS: 443)
  • management.azure.com— This is where azure management endpoint lives (HTTPS: 443)
  • login.microsoftonline.com — This is required if you are using Azure AD authentication for your AKS cluster (HTTPS: 443)
  • acs-mirror.azureedge.net— This is where azure keeps the cni plugin (HTTPS:443)

These cannot be filtered on a network level and need therefore be configured using application rules.

Optionally you might want to allow the following traffic:

  • “download.opensuse.org” “security.ubuntu.com” “packages.microsoft.com” “azure.archive.ubuntu.com” “changelogs.ubuntu.com” “snapcraft.io” “api.snapcraft.io” “motd.ubuntu.com” — This is needed for security patches and updates — if the customer wants them to be applied automatically
  • “*auth.docker.io” “*cloudflare.docker.io” “*cloudflare.docker.com” “*registry-1.docker.io” — In case you want to download images from DockerHub

Now all outgoing traffic will be filtered and you can check that by launching a pod and see if you can curl the outside internet.

cat <<EOF | kubectl apply -f -
apiVersion: v1
kind: Pod
metadata:
name: centos
spec:
containers:
- name: centoss
image: centos
ports:
- containerPort: 80
command:
- sleep
- "3600"
EOF

Now log inside and verify that we cannot curl to an external url that is not allowed while www.ubuntu.com is working fine.

Azure firewall working as expected, allowing www.ubuntu.com but blocking everything else.

One more thing might interest you: “How to expose a kubernetes service through the azure firewall?” If you expose a service through the normal LoadBalancer with a public ip, it will not be accessible because the traffic that has not been routed through the azure firewall will be dropped on the way out. Therefore you need to create your service with a fixed internal ip, internal LoadBalancer and route the traffic through the azure firewall both for outgoing and incoming traffic. If you only want to use internal load balancers, then you do not need to do this.

kubectl run nginx --image=nginx --port=80cat <<EOF | kubectl apply -f -
apiVersion: v1
kind: Service
metadata:
name: nginx-internal
annotations:
service.beta.kubernetes.io/azure-load-balancer-internal: "true"
service.beta.kubernetes.io/azure-load-balancer-internal-subnet: "ing-4-subnet"
spec:
type: LoadBalancer
loadBalancerIP: 10.0.4.4
ports:
- port: 80
selector:
run: nginx
EOF

Now we retrieve the internal load balancer ip and register it in the azure firewall as a Dnat rule.

SERVICE_IP=$(kubectl get svc nginx-internal --template="{{range .status.loadBalancer.ingress}}{{.ip}}{{end}}")az network firewall nat-rule create  --firewall-name $FW_NAME --collection-name "inboundlbrules" --name "allow inbound load balancers" --protocols "TCP" --source-addresses "*" --resource-group $KUBE_GROUP --action "Dnat"  --destination-addresses $FW_PUBLIC_IP --destination-ports 80 --translated-address $SERVICE_IP --translated-port "80"  --priority 101

Now you can access the internal service by going to the public ip of your azure firewall on port 80

open http://$FW_PUBLIC_IP:80

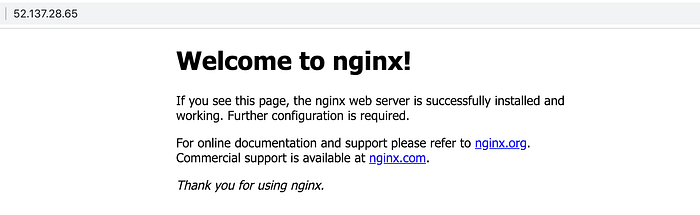

Our internal service is no reachable through the azure firewall public ip on port 80

THE END ;-)

--

--
